OL 95 * Surface-mounted fanlight opener with an opening width of 220 mm
- Achieves the full opening width of 220 mm for all leaf heights
- The opening width can be adjusted
- Little space necessary thanks to flat design of the scissors
- Integrated leaf locking mechanism in the scissors ensures secure locking
- Unhinging inhibitor and lockable hand lever offer additional safety
- The additional locking mechanism increases safety and air-tightness
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward opening bottom-hung windows
- Can also be used on rectangular windows for inward-opening top-hung windows
- Special forms such as pitched and triangular windows possible
- Installation on wooden, plastic or aluminium windows
- Frame installation
Technical data
| OL 95 | |
| Length | 305 mm |
| Depth | 49 mm |
| Height | 16 mm |
| Opening angle (max.) | 220 mm |
| Leaf width (min.) | 440 mm |
| Leaf height (min.) | 350 mm |
| Leaf weight (max.) | 60 kg |
| Fitting stroke | 54 mm |
| Adjustable opening width (stroke reduction) | Dependent |
| Leaf locking mechanism integrated in the scissors | Yes |
| Scissor unhooking by release button | Yes |
| Lockable | Yes |
| Unhinging inhibitor | Yes |

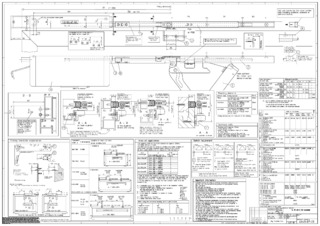

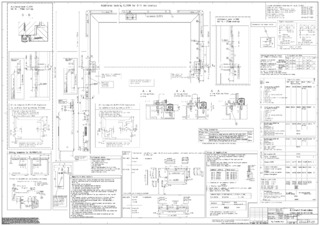

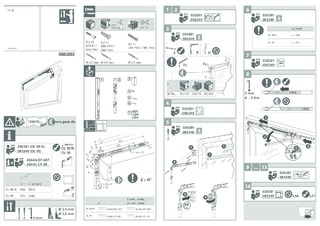

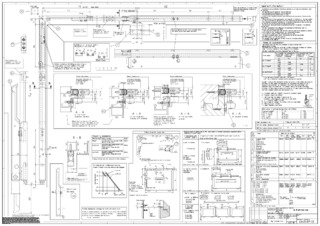

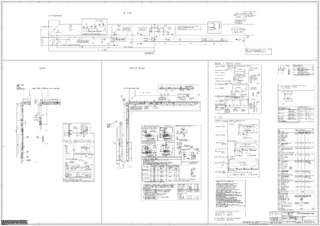

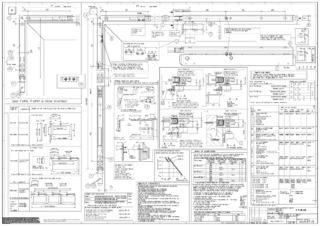

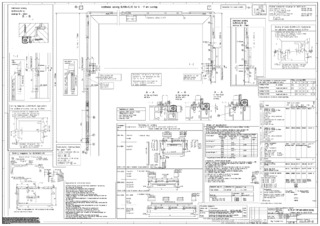

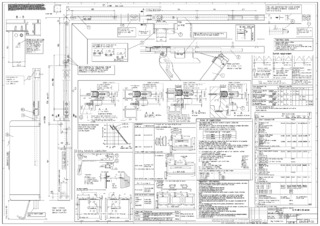

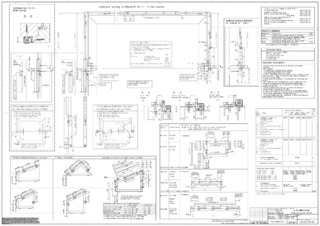

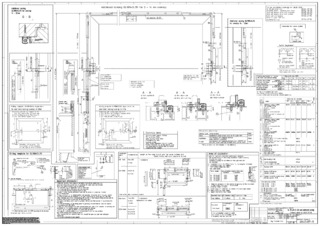

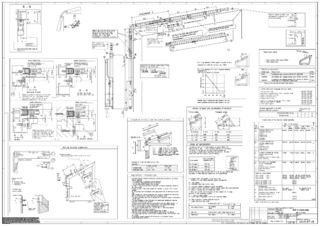

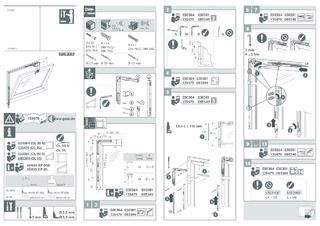

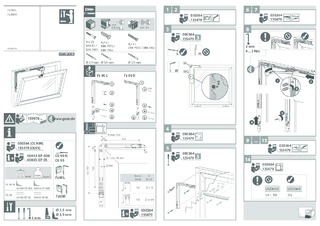

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
